MAEDA-MK 3053C ECO

(2.8t x 1.8m)

The Lift MAEDA-MK 3053C ECO is the latest fully electric powered crane from Maeda. With absolute zero emissions, it can safely be used in sensitive indoor environments, and environments with reduced ventilation.

  • Radio Remote Control
  • 4 Falls Hook Mode
  • Automatic and Stepless Multi-Outrigger Setting
  • Variable Crawler Gauge
  • Negative Angle Jib
  • Low Ground Pressure

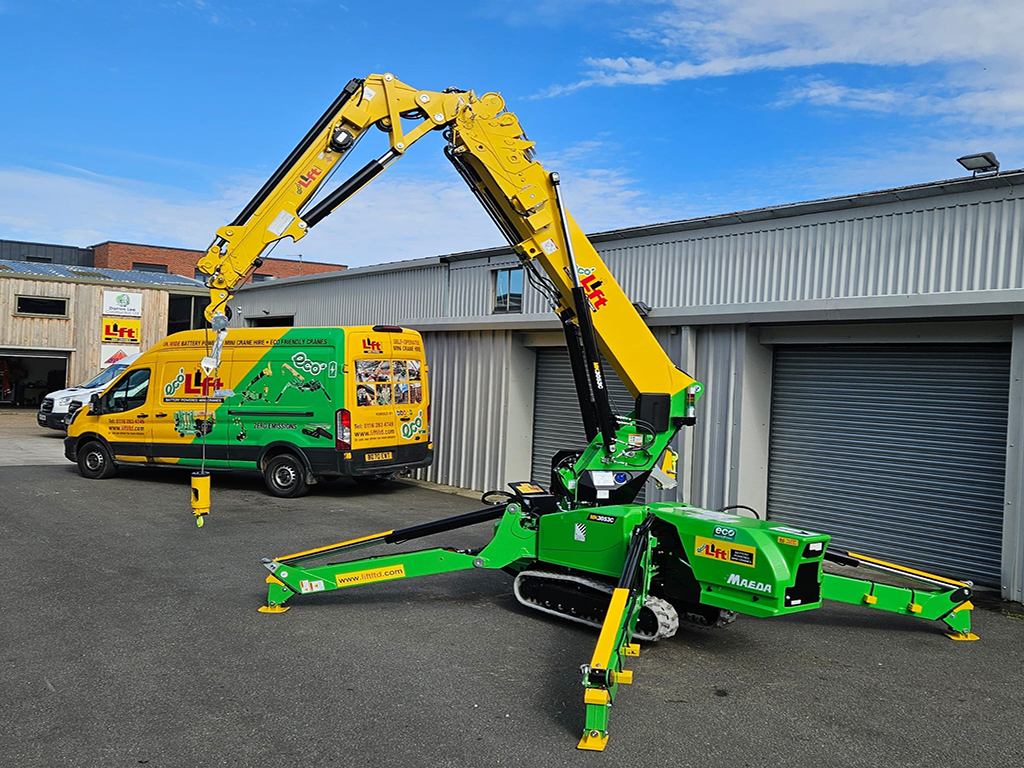

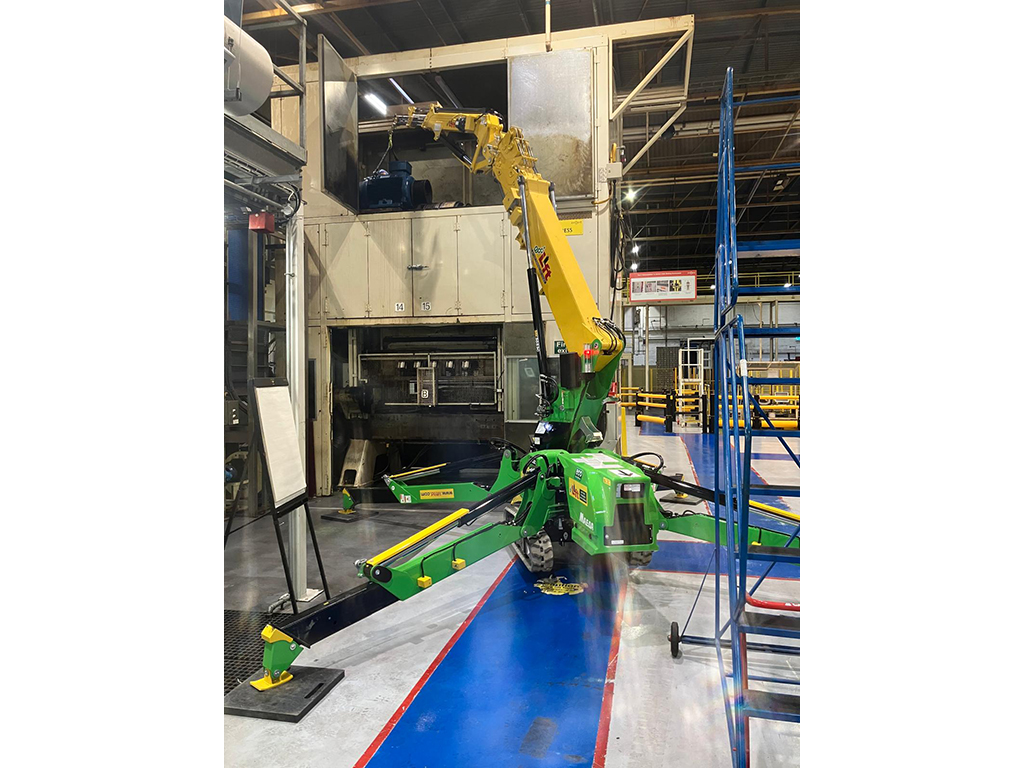

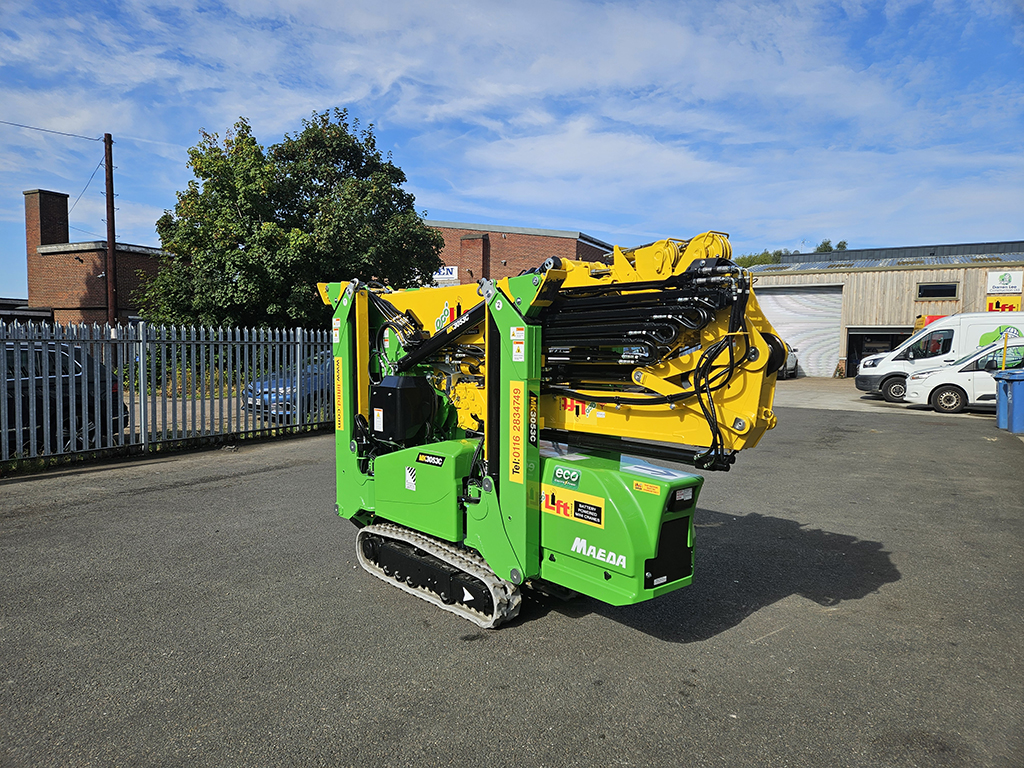

Lifting Gallery

Working Range

Main Boom Stage Extensions

FIRST STAGE EXTENDED 1.00-2.95M BOOM LENGTH
Working Radius (m)
Outrigger Max (Kg)
Outrigger Mid (Kg)
Outrigger Min (Kg)
<1
2980
2980
2980
1.5
2980
2980
2980
1.8
2980
2980
2980
2.0
2865
2865
2865
2.19
2715
2715
2715
SECOND STAGE EXTENDED 4.76M BOOM LENGTH
Working Radius (m)
Outrigger Max (Kg)
Outrigger Mid (Kg)
Outrigger Min (Kg)
<2
2570
2570
2570
2.19
2570
2570
2265
2.5
2405
2330
1905
3
2030
2000
1515
3.5
1735
1720
1265
4
1500
1490
1085
THIRD STAGE EXTENDED 6.57M BOOM LENGTH
Working Radius (m)
Outrigger Max (Kg)
Outrigger Mid (Kg)
Outrigger Min (Kg)
<2
2380
2380
2380
2.19
2380
2380
2165
2.5
2205
2140
1875
3
1940
1805
1510
3.5
1705
1525
1225
4
1490
1290
1005
4.5
1300
1085
820
5
1130
905
670
5.5
975
750
545
5.81
885
665
480
FOURTH STAGE EXTENDED 8.38M BOOM LENGTH
Working Radius (m)
Outrigger Max (Kg)
Outrigger Mid (Kg)
Outrigger Min (Kg)
<2.19
2000
2000
2000
2.5
2000
2000
1670
3
1755
1645
1295
3.5
1545
1380
1045
4
1360
1165
860
4.5
1200
990
720
5
1060
850
610
5.5
930
725
525
5.81
860
660
475
6
815
625
450
6.5
710
535
390
7
620
455
335
7.5
530
390
290
7.62
510
375
285
FIFTH STAGE EXTENDED 10.19M BOOM LENGTH
Working Radius (m)
Outrigger Max (Kg)
Outrigger Mid (Kg)
Outrigger Min (Kg)
<2.5
1450
1450
1450
3
1450
1450
1125
3.5
1450
1210
910
4
1255
1025
750
4.5
1100
880
630
5
965
760
535
5.5
850
660
460
5.81
790
605
420
6
755
575
395
6.5
670
500
345
7
595
440
300
7.5
525
385
260
7.62
510
370
250
8
470
335
230
8.5
415
290
200
9
365
255
170
9.3
340
230
160
9.43
330
225
155

Main Boom with Hydraulic Jib – with Fixed Hook

FIXED HOOK EXTENDED 2.27M JIB
Boom (m)
Boom Angle (˚)
Jib Angle (˚)
Outrigger Max (Kg)
Outrigger Mid (Kg)
Outrigger Min (Kg)
3.05
85˚
90˚
950
950
950
3.05
85˚
85˚
950
950
950
3.05
85˚
55˚
950
950
950
3.05
85˚
0˚
950
950
950
3.05
45˚
90˚
950
950
950
3.05
45˚
85˚
950
950
950
3.05
45˚
55˚
950
950
950
3.05
45˚
0˚
950
950
950
3.05
0˚
0˚
950
950
780
4.86
85˚
90˚
950
950
950
4.86
85˚
85˚
950
950
950
4.86
85˚
55˚
950
950
950
4.86
85˚
0˚
950
950
950
4.86
67˚
90˚
950
950
950
4.86
67˚
85˚
950
950
950
4.86
67˚
55˚
950
950
950
4.86
67˚
0˚
950
950
950
4.86
45˚
90˚
950
950
950
4.86
45˚
85˚
950
950
950
4.86
45˚
55˚
950
950
950
4.86
45˚
0˚
950
950
730
4.86
0˚
0˚
725
540
300
6.67
85˚
90˚
950
950
950
6.67
85˚
85˚
950
950
950
6.67
85˚
55˚
950
950
950
6.67
85˚
0˚
950
950
950
6.67
67˚
90˚
950
950
950
6.67
67˚
85˚
950
950
950
6.67
67˚
55˚
950
950
950
6.67
67˚
0˚
950
950
700
6.67
50˚
90˚
950
950
740
6.67
50˚
85˚
950
950*²
680
6.67
50˚
55˚
950*¹
670
480
6.67
50˚
0˚
800
555
375
6.67
35˚
90˚
900
595
320
6.67
35˚
85˚
850
560
310
6.67
35˚
55˚
630
420
245
6.67
35˚
0˚
510
355
185
6.67
0˚
0˚
380
260
105
8.48
85˚
90˚
950
950
950
8.48
85˚
85˚
950
950
950
8.48
85˚
55˚
950
950
950
8.48
85˚
0˚
950
950
950
8.48
67˚
90˚
950
950
950
8.48
67˚
85˚
950
950
950
8.48
67˚
55˚
950
950
750
8.48
67˚
0˚
950
825
570
8.48
55˚
90˚
950
810
535
8.48
55˚
85˚
950
720
495
8.48
55˚
55˚
770
520
355
8.48
55˚
0˚
630
435
260
8.48
40˚
90˚
570
365
205
8.48
40˚
85˚
540
350
185
8.48
40˚
55˚
415
270
130
8.48
40˚
0˚
335
230
90
8.48
0˚
0˚
195
100
/
10.29
85˚
90˚
950
950
950
10.29
85˚
85˚
950
950
950
10.29
85˚
55˚
950
950
950
10.29
85˚
0˚
950
950
950
10.29
67˚
90˚
950
950
845
10.29
67˚
85˚
950
950
775
10.29
67˚
55˚
950
745
535
10.29
67˚
0˚
850
610
350
10.29
55˚
90˚
660
470
300
10.29
55˚
85˚
630
445
290
10.29
55˚
55˚
515
340
205
10.29
55˚
0˚
440
290
135
10.29
40˚
90˚
300
190
/
10.29
40˚
85˚
285
180
/
10.29
40˚
55˚
230
140
/
10.29
40˚
0˚
220
120
/
10.29
0˚
0˚
75
/
/
FIXED HOOK EXTENDED 3.54M JIB
Boom (m)
Boom Angle (˚)
Jib Angle (˚)
Outrigger Max (Kg)
Outrigger Mid (Kg)
Outrigger Min (Kg)
3.05
85˚
90˚
950
950
950
3.05
85˚
85˚
950
950
950
3.05
85˚
55˚
710
710
710
3.05
85˚
0˚
605
605
605
3.05
45˚
90˚
950
950
950
3.05
45˚
85˚
950
950
950
3.05
45˚
55˚
710
710
710
3.05
45˚
0˚
605
605
605
3.05
0˚
0˚
605
605
525
4.86
85˚
90˚
950
950
950
4.86
85˚
85˚
950
950
950
4.86
85˚
55˚
710
710
710
4.86
85˚
0˚
605
605
605
4.86
67˚
90˚
950
950
950
4.86
67˚
85˚
950
950
950
4.86
67˚
55˚
710
710
710
4.86
67˚
0˚
605
605
605
4.86
45˚
90˚
950
950
950
4.86
45˚
85˚
950
950
950
4.86
45˚
55˚
710
710
625
4.86
45˚
0˚
605
560
390
4.86
0˚
0˚
540
410
230
6.67
85˚
90˚
950
950
950
6.67
85˚
85˚
950
950
950
6.67
85˚
55˚
710
710
710
6.67
85˚
0˚
605
605
605
6.67
67˚
90˚
950
950
950
6.67
67˚
85˚
950
950
950
6.67
67˚
55˚
710
710
710
6.67
67˚
0˚
605
605
480
6.67
50˚
90˚
950
950
740
6.67
50˚
85˚
950
935
655
6.67
50˚
55˚
710
550
395
6.67
50˚
0˚
590
410
280
6.67
35˚
90˚
900
595
320
6.67
35˚
85˚
820
540
320
6.67
35˚
55˚
530
355
210
6.67
35˚
0˚
400
275
140
6.67
0˚
0˚
300
210
80
8.48
85˚
90˚
950
950
950
8.48
85˚
85˚
950
950
950
8.48
85˚
55˚
710
710
710
8.48
85˚
0˚
605
605
605
8.48
67˚
90˚
950
950
950
8.48
67˚
85˚
950
950
950
8.48
67˚
55˚
710
710
595
8.48
67˚
0˚
605
580
380
8.48
55˚
90˚
950
810
535
8.48
55˚
85˚
950
690
480
8.48
55˚
55˚
640
435
290
8.48
55˚
0˚
480
335
205
8.48
40˚
90˚
570
365
205
8.48
40˚
85˚
530
340
180
8.48
40˚
55˚
360
235
115
8.48
40˚
0˚
270
180
70
8.48
0˚
0˚
160
90
/
10.29
85˚
90˚
950
950
950
10.29
85˚
85˚
680
680
680
10.29
85˚
55˚
680
680
680
10.29
85˚
0˚
605
605
605
10.29
67˚
90˚
950
950
845
10.29
67˚
85˚
680
680
680
10.29
67˚
55˚
680
605
435
10.29
67˚
0˚
590
450
290
10.29
55˚
90˚
660
470
300
10.29
55˚
85˚
610
430
280
10.29
55˚
55˚
445
295
180
10.29
55˚
0˚
335
230
80
10.29
40˚
90˚
300
190
/
10.29
40˚
85˚
280
175
/
10.29
40˚
55˚
205
120
/
10.29
40˚
0˚
155
95
/
10.29
0˚
0˚
60
/
/
FIXED HOOK EXTENDED 4.81M JIB
Boom (m)
Boom Angle (˚)
Jib Angle (˚)
Outrigger Max (Kg)
Outrigger Mid (Kg)
Outrigger Min (Kg)
3.05
85˚
90˚
950
950
950
3.05
85˚
85˚
610
610
610
3.05
85˚
55˚
610
610
610
3.05
85˚
0˚
445
445
445
3.05
45˚
90˚
950
950
950
3.05
45˚
85˚
610
610
610
3.05
45˚
55˚
610
610
610
3.05
45˚
0˚
445
445
445
3.05
0˚
0˚
445
445
390
4.86
85˚
90˚
950
950
950
4.86
85˚
85˚
610
610
610
4.86
85˚
55˚
610
610
610
4.86
85˚
0˚
455
455
455
4.86
67˚
90˚
950
950
950
4.86
67˚
85˚
610
610
610
4.86
67˚
55˚
610
610
610
4.86
67˚
0˚
455
455
455
4.86
45˚
90˚
950
950
950
4.86
45˚
85˚
610
610
610
4.86
45˚
55˚
610
610
470
4.86
45˚
0˚
445
425
300
4.86
0˚
0˚
425
325
185
6.67
85˚
90˚
950
950
950
6.67
85˚
85˚
610
610
610
6.67
85˚
55˚
610
610
610
6.67
85˚
0˚
445
445
445
6.67
67˚
90˚
950
950
950
6.67
67˚
85˚
610
610
610
6.67
67˚
55˚
610
610
610
6.67
67˚
0˚
445
445
370
6.67
50˚
90˚
950
950
740
6.67
50˚
85˚
610
610
610
6.67
50˚
55˚
610
460
330
6.67
50˚
0˚
445
320
205
6.67
35˚
90˚
900
595
320
6.67
35˚
85˚
610
525
320
6.67
35˚
55˚
455
305
175
6.67
35˚
0˚
325
220
115
6.67
0˚
0˚
250
170
55
8.48
85˚
90˚
950
950
950
8.48
85˚
85˚
610
610
610
8.48
85˚
55˚
610
610
610
8.48
85˚
0˚
445
445
445
8.48
67˚
90˚
950
950
950
8.48
67˚
85˚
610
610
610
8.48
67˚
55˚
610
610
490
8.48
67˚
0˚
445
445
300
8.48
55˚
90˚
950
810
535
8.48
55˚
85˚
610
610
465
8.48
55˚
55˚
545
375
240
8.48
55˚
0˚
385
265
160
8.48
40˚
90˚
570
365
205
8.48
40˚
85˚
520
330
180
8.48
40˚
55˚
320
205
90
8.48
40˚
0˚
225
150
/
8.48
0˚
0˚
130
70
/
10.29
85˚
90˚
950
950
950
10.29
85˚
85˚
610
610
610
10.29
85˚
55˚
610
610
610
10.29
85˚
0˚
445
445
445
10.29
67˚
90˚
950
950
845
10.29
67˚
85˚
610
610
610
10.29
67˚
55˚
610
505
365
10.29
67˚
0˚
445
350
225
10.29
55˚
90˚
660
470
300
10.29
55˚
85˚
590
420
270
10.29
55˚
55˚
390
255
145
10.29
55˚
0˚
285
185
/
10.29
40˚
90˚
300
190
/
10.29
40˚
85˚
275
165
/
10.29
40˚
55˚
180
105
/
10.29
40˚
0˚
150
75
/
10.29
0˚
0˚
45
/
/

Dimensions

Technical Data

Crane capacity2.8t x 1.8m (1t x 4.7m jib)
Max working radius9.4 x 360kg (14.3m x 50Kg jib)
Max lifting height (on ground)12m x 360kg (16.95m x 445kg jib)
Dimensions3195mm x 780mm x 1945mm
Machine weight2900kg
Outrigger typeHydraulic cylinder direct acting type
Max extended width4546mm x 4537 x 4315mm
Extended positionMulti (stepless)
Ground pressure83.4kpa
Battery typeLithium titanate battery
5 hour rate capacityDC55V – 135Ah
Input voltage / currentSingle phase AC200V/16A, AC100V/14A
Charging time with AC-200V80%: 2 hour 20 min / 100%: 3 Hour 30 min
Charging time with AC-100V80%: 5 hour 20 min / 100%: 7 Hour
Continuous operation timeFull working day if charged continuous
Charging during operationAvailable
OptionsBlack or white rubber tracks, winch (4 falls)

Attachments & Accessories

Fully Proportional
Radio Remote Control
2-Ways
Jib Head Position

Quick Links

Tracked Carriers
Glass Lifting
Training
Contact Us
