Floor Cranes
We have an extensive range of floor cranes, many of which are designed to be used where the room above a load is limited, so a floor crane can be the ideal option for lifting heavy loads indoors where the ceiling height can reduce the options. Another popular purpose for floor cranes would be glazing operations where an attachment can be suspended from the floor crane and offered into place.

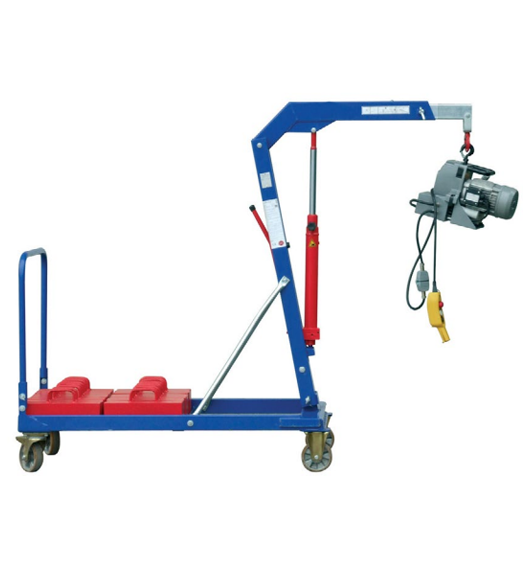

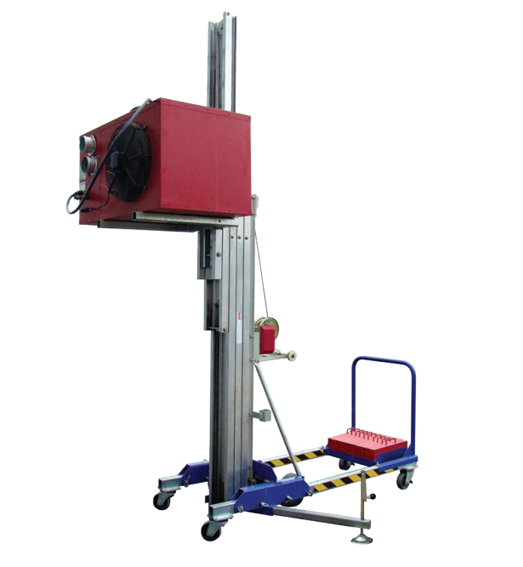

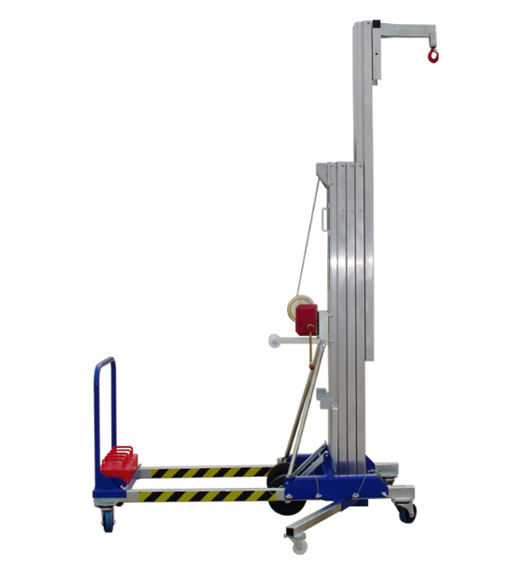

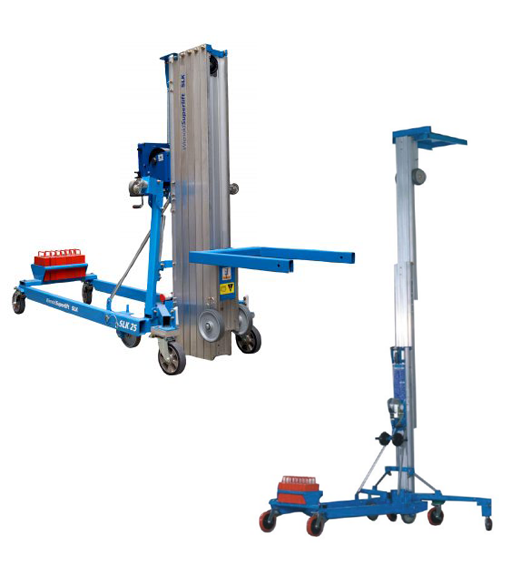

The Wienold Superlift with counterbalance weights is optimal in order to bring loads e.g. directly to walls, or on high lying porches. Therefore we arranged the outriggers and counterbalance weights in the back and the lifting attachments in front of the lift. The Superlift is an ideal aid handling heavy loads especially to handle window panes, heating and ventilation. The SLK is available in five payloads of 300 – 450kg. Scope of supply: four large swivel casters, 1-gear winch, counterbalance weight box with 8 x 16kg weights.

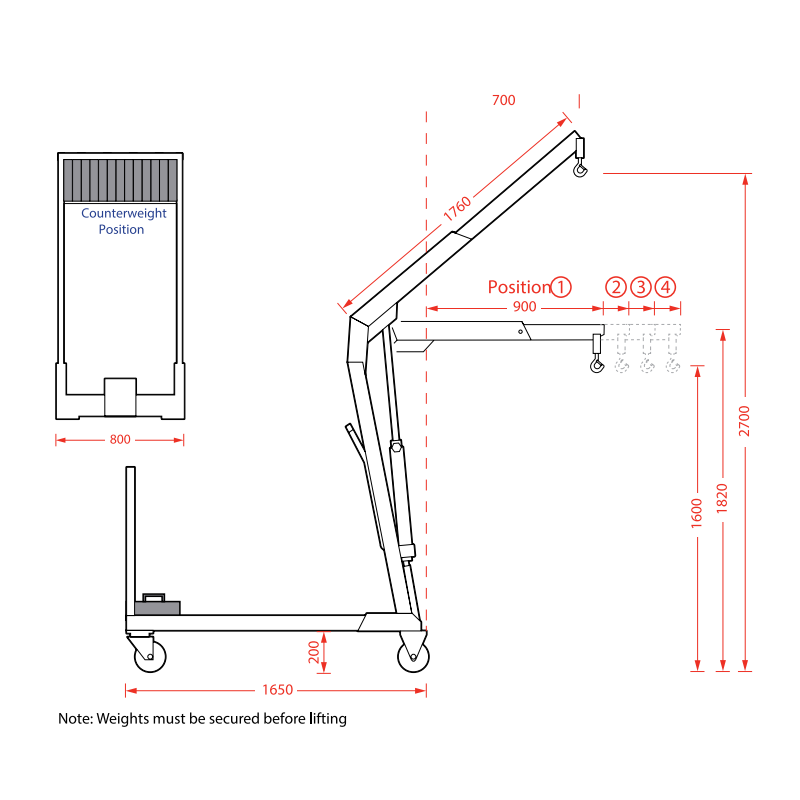

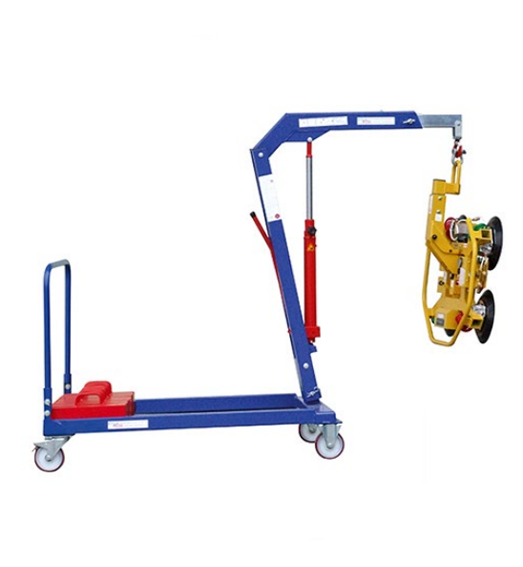

The Glassboy 330 is a versatile counterbalanced floor crane that is a proven best seller thanks to its easy-to-assemble, highly portable frame, and flexibility to assist in a broad range of applications. With the ability to handle loads of up to 330kg and a maximum hook height of 2.7m, the Glassboy 330 is a compact and reliable lifting aid. When combined with a range of below-the-hook devices such as vacuum lifters, it is ideal for shop - front glazing and fitting below overhangs.

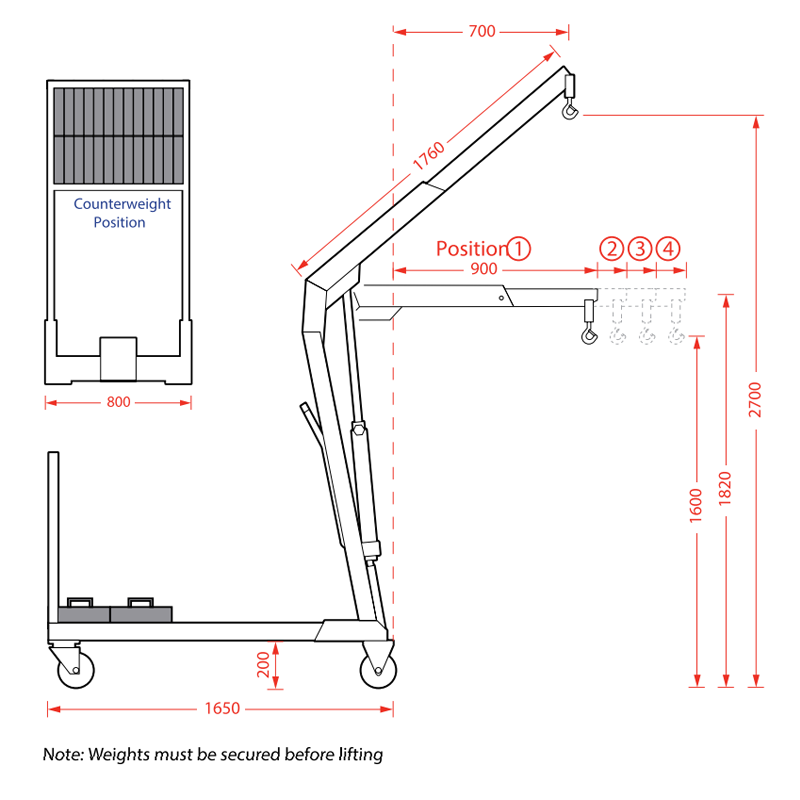

With a lifting capacity of up to 500kg and a maximum hook height of 2.7m, the Glassboy 500 is a compact and lightweight crane that can be used between floors for raising loads from the ground with its optional electric hoist. The Glassboy 500 can assist with a broad range of lifting applications. It is ideal for shop - front glazing and fitting below overhangs when used in conjunction with below - the hook devices such as vacuum lifters.

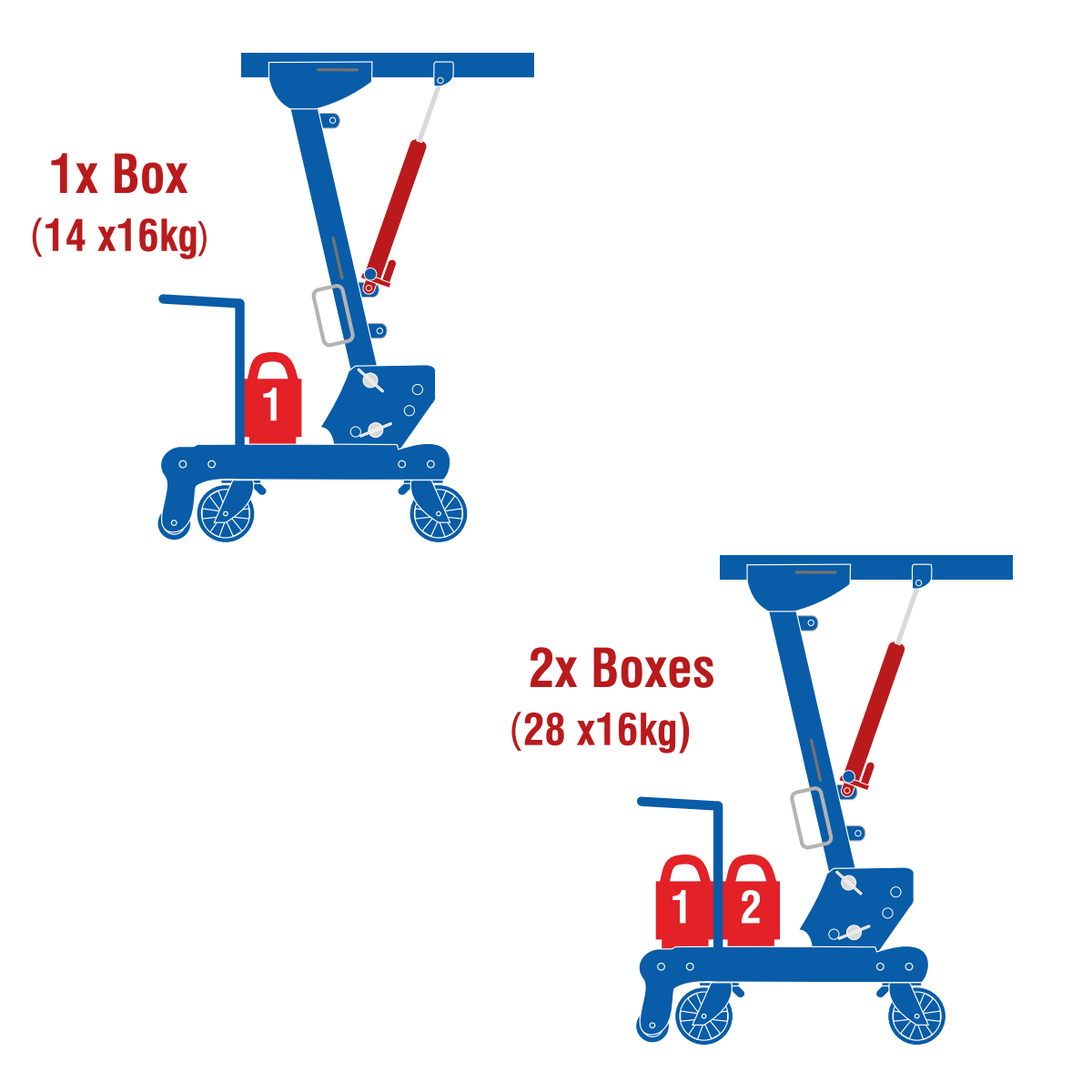

The Wienold Mini Floor Crane (MFC) KS is designed to suit a range of indoor applications. It's the short version without outriggers, but has the advantage of working in confined spaces as it only needs 0.65 x 1.2m of floor space to operate. The MFC Ks can lift loads of up to 745kg to a height of 2.90m. The Wienold MFC is also fully adaptable and can even lift loads from below ground level with an optional electric hook winch.

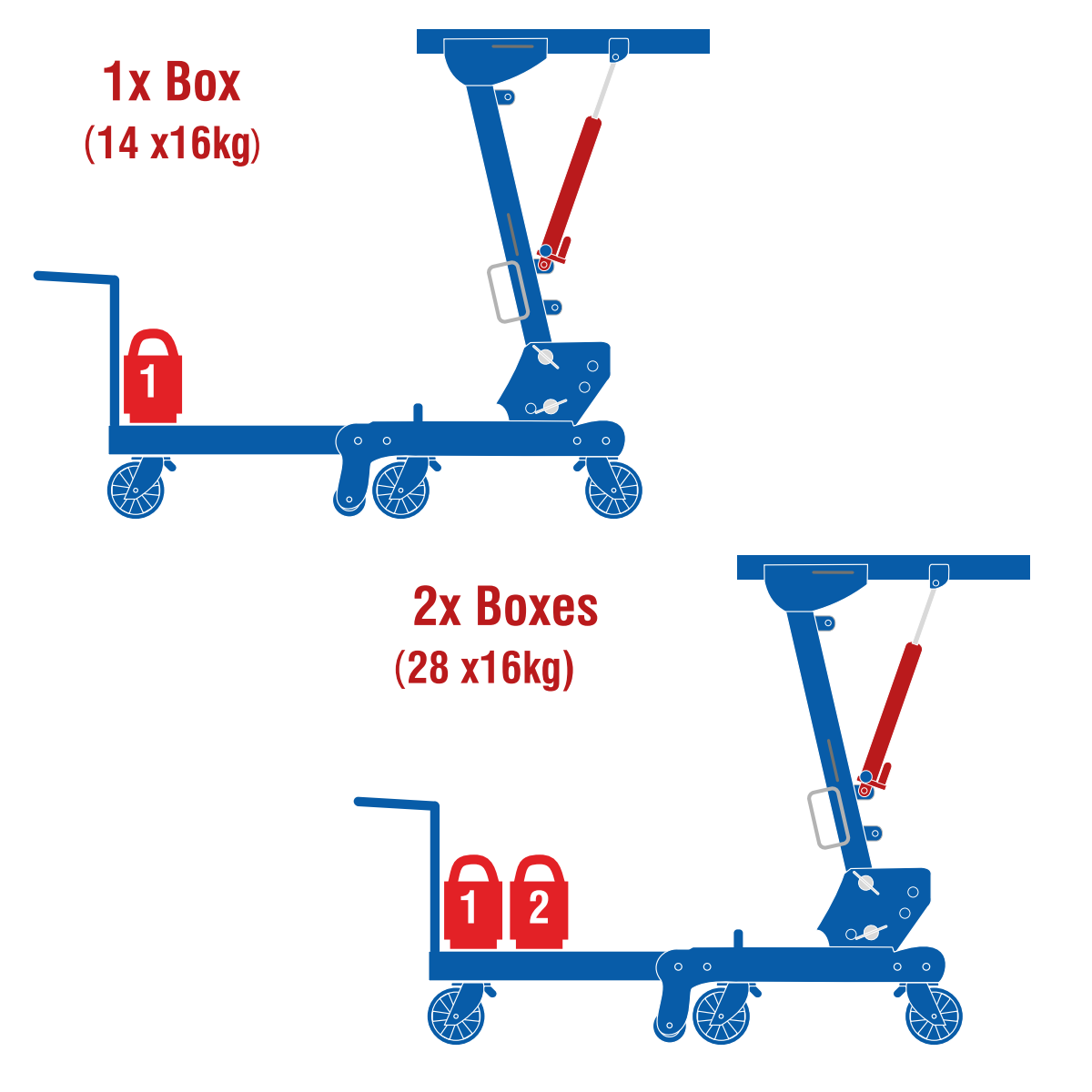

The Wienold Mini Floor Crane (MFC) K model is designed to suit a range of indoor and outdoor applications. It features two reverse-mounted outriggers with counterweight boxes for extra stability, and can lift loads of up to 900kg to a height of 2.90m. The Wienold MFC is also fully adaptable and can even lift loads from below ground level with an optional electric hook winch.

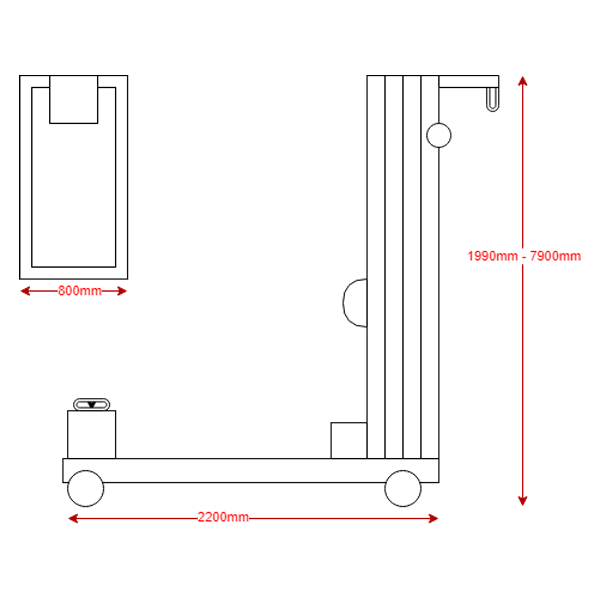

The lightweight manual Glassmax hoist can be combined with a vacuum lifter for quick and effective installation of vertical glazing. The Glassmax hoist can handle loads of up to 250kg to a hook height of 7.2 metres.The Glassmax is simple to build and dismantle, with removable counterweights, making it easy to transport to site. An optional fork attachment can be used for the installation of HVAC units, pipes, ducts and palletised loads up to a maximum height of 7.5m.

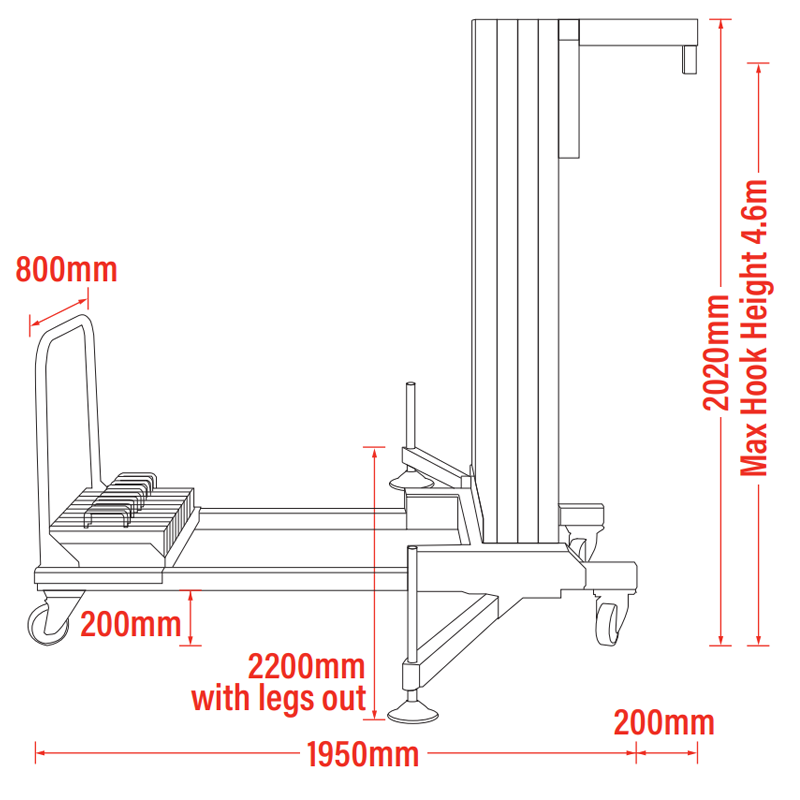

The robust Glassmax 500 hoist can lift 500kg to 4.6m and is easy to assemble and disassemble with a removable counterweight system. This multi-functional manual hoist is perfect for overhead or vertical glazing when combined with one of our vacuum lifters. An optional fork attachment can be used for the installation of HVAC units, pipes, ducts and palletised loads up to a maximum height of 4.8m.
