Lifting Beams

Lifting large and long objects can present a problem sometimes where a load needs to be kept straight and rigid. We offer a range of different beams both spreader type and lifting beams so we can provide a solution to your requirements.

LIFT

HOEFLON LIFTING BEAM 6000

Capacity 6000kg

The HOEFLON Lifting Beam 6000 offers an impressive 6.0t capacity and provides a robust platform for any heavy lift.

  • Low net weight 45kg
  • Compact dimensions
  • Flexible adjustability
  • High capacity 1.2t - 6.0t
  • Dimensions 1250mm x 169mm x 274mm
LIFT

ALUEX SPREADER BEAM 10

Capacity 10000kg

Aluex is a state of the art lifting beam with endless opportunities. Lift boats, construction equipment and a lot more, both big and small pieces. The lifting beam may be set to three different length prefrences and you don’t need to worry about width, Aluex sets that for you. Our flagship lifting beam with a 10t lifting capacity and a weight of only 45kg has all features you would want a lifting beam to have.The Aluex is anything but heavy, forget everything that feels slow, heavy or hard to handle. Unloading and set up of the Aluex is faster than any other lifting beam on the market. While safety is most important, you still need to be fast.

  • 10000kg lifting capacity at 30˚
  • 5800kg lifting capacity at 40˚
  • Length 2.5m
  • Weight 45kg
  • Aluminium construction
  • Maximum width 3.5m
LIFT

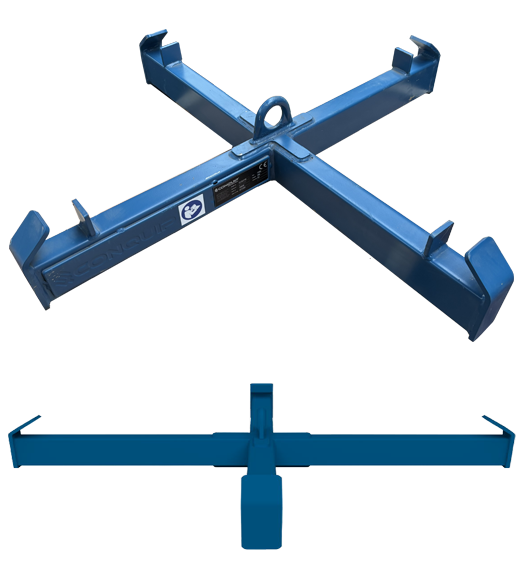

CONQUIP BAG LIFTING FRAME 1T

Capacity 1100kg

The Bag Lifting Frame, or bulk bag carrier, is a crane lifting frame designed for the safe and easy movement of ‘tonne bags’ and other bulk bags of materials or waste around site. The frame has one central lifting point for connecting to a crane or other lifting apparatus.

  • Robust design to withstand regular use.
  • One central lifting point for connecting to a crane, or other suitable lifting apparatus.
  • Much safer method for transporting bulk bags over short distances than balancing on the end of fork tines.
  • Single connection point allows for faster and more efficient attachment to lifting apparatus.
  • Working load limit 1100kg

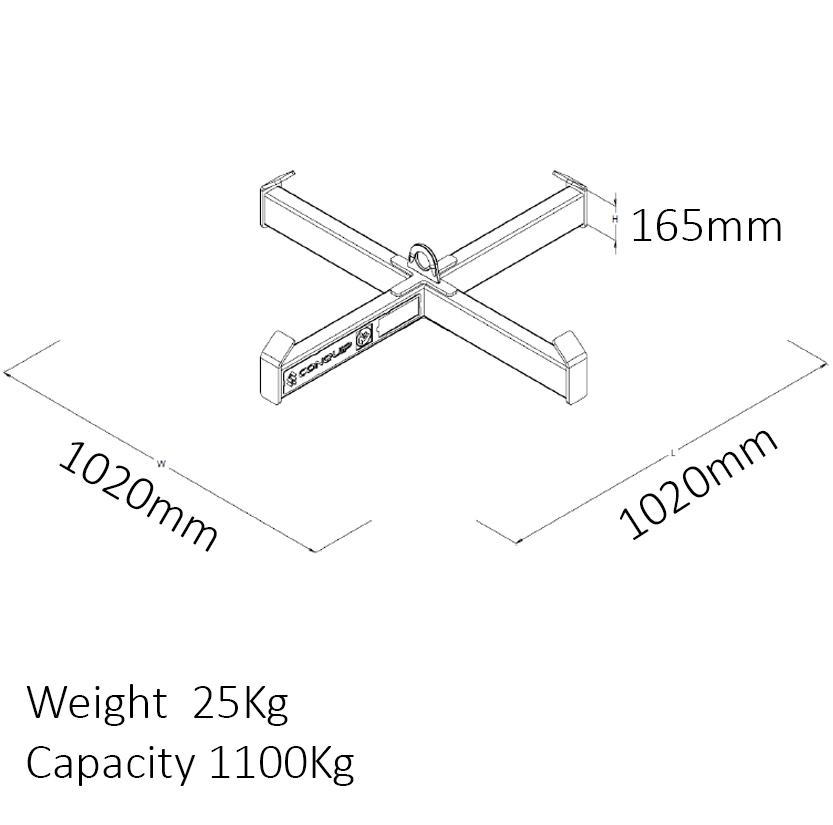

  • Length 1020mm
  • Width 1020mm
  • Height 165mm
  • Weight 25kg
