MAEDA-MC 174C
(1.72t x 1.0m)
The Maeda MC174 sets the standard that other mini cranes try to achieve. Its super slim width of 590mm coupled with its 1.72 ton lifting capacity make it absolutely unparalleled. This fantastic machine also retains all of the other benefits of the machines in the Maeda range including, remote control capability and unrivalled build quality and usability.
- Super Slim Body Width (590mm)
- 5.5m Max Working Height
- Capable of lifting 172Kg at 1.0M
- Low Ground Pressure
- Manoeuvrability & Stability
- Programmable Moment Limiter
- Hydrostatic Transmission
- Tilt Alarm
- High Speed Winch
- 2 Travel Speeds
- Remote Control
- 500Kg Searcher Hook Attachment

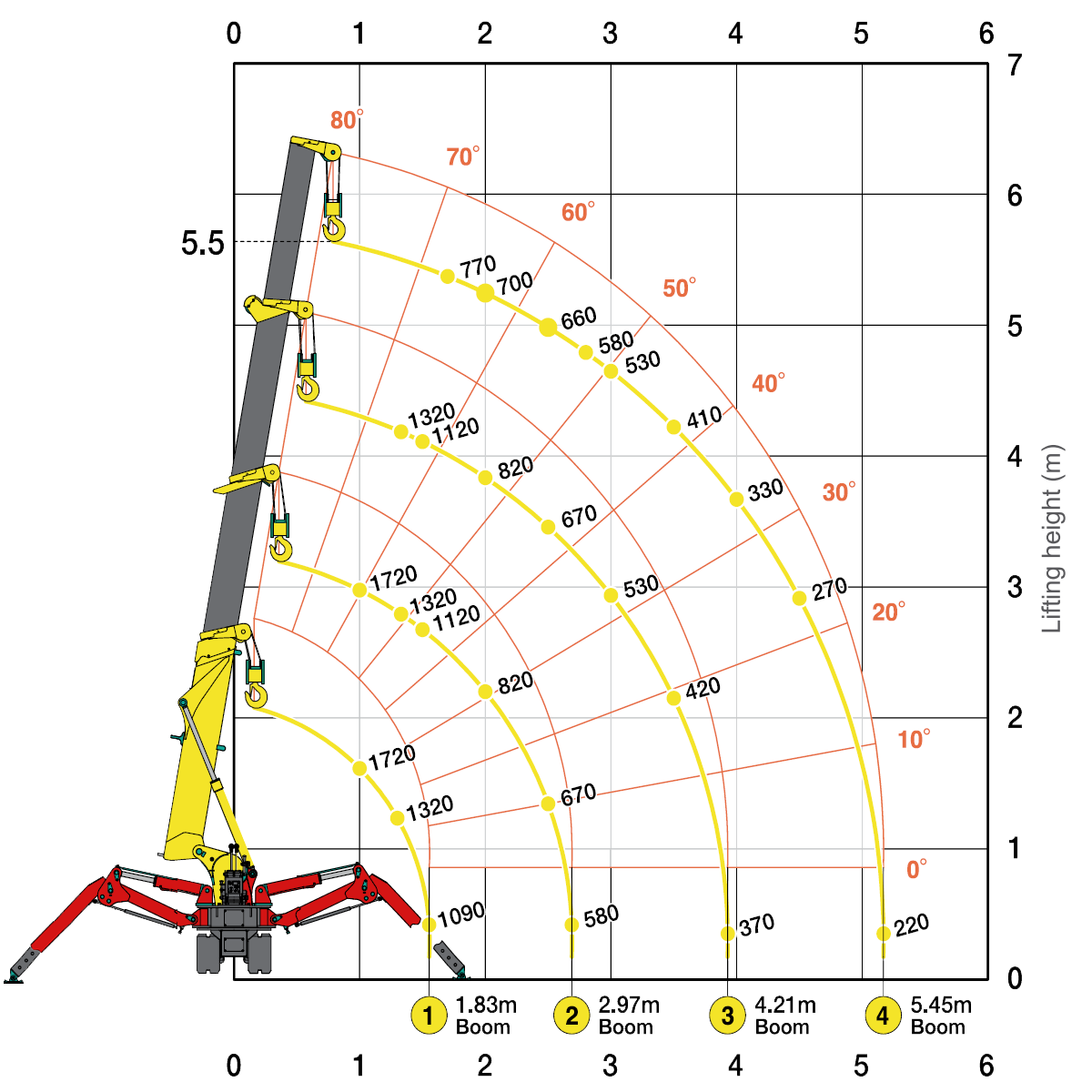

Stage Extensions
FIRST STAGE EXTENDED 1.83M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
SECOND STAGE EXTENDED 2.97M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
THIRD STAGE EXTENDED 4.21M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
FOURTH STAGE EXTENDED 5.45M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg

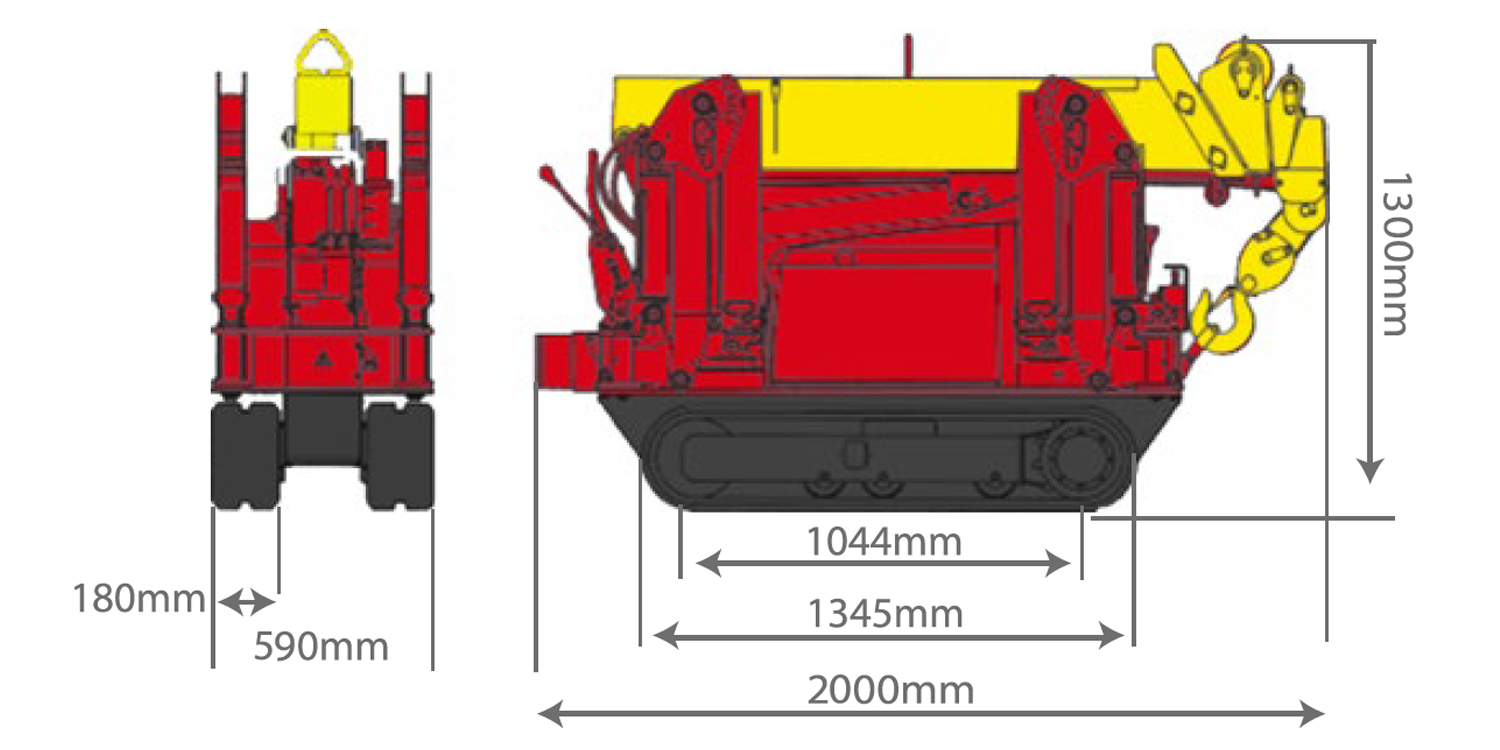

Dimensions
Technical Data
| Crane capacity | 1.72t x 1m |
| Max working radius | 5.17m x 220kg |
| Max lifting height | 5.5m x 770kg |
| Dimensions (packed) | 590mm(W) x 2000mm(L) x 1300mm(H) |
| Weight (unladen) | 1290kg |
| Hook speed | approx 10.9m / min. (4 falls, 3rd layer) |
| Single line speed | approx 43.6m / min. (3rd layer) |
| Telescopic boom length | 1.83m - 5.45m |
| Telescoping speed | 3.62m / 15 sec |
| Boom type | Fully automatic 4 section pentagonal telescopic boom |
| Boom hoist system | Hoist angle / speed 3º - 77º / 12 sec |
| Slewing angle / speed | approx: 360º continuous / 2.0min-¹ (rpm) |
| Traction system drive | Hydrostatic, step - less forward and reverse |
| Travel speed | 0 - 3.3km / h |
| Gradability | 20˚ |
| Track ground length | 1044mm (180mm track) |
| Track ground pressure | 0.34 kgf / cm² |
| Track width | 180mm |
| Engine manufacturer | Mitsubishi GB400LE |
| Fuel type | Petrol / LPG |
| Maximum output | 6.6kW / 1800 rpm |
| Starting method | Electric |
| Standard equipment | Cable remote control, overwind protection, hydraulic safety valves, working light, hour-meter, 4-fall hook block, black rubber tracks, moment limiter, EMO switch, level, tilt alarm, working status lamp |
| Optional equipment | White rubber tracks, Single fall hook, Two fall hook, 300kg searcher hook, Radio remote control, LPG kit, Electric 380/400V power pack |
