BGLIFT BG-M250-ECO
(2.5t x 1.5m)

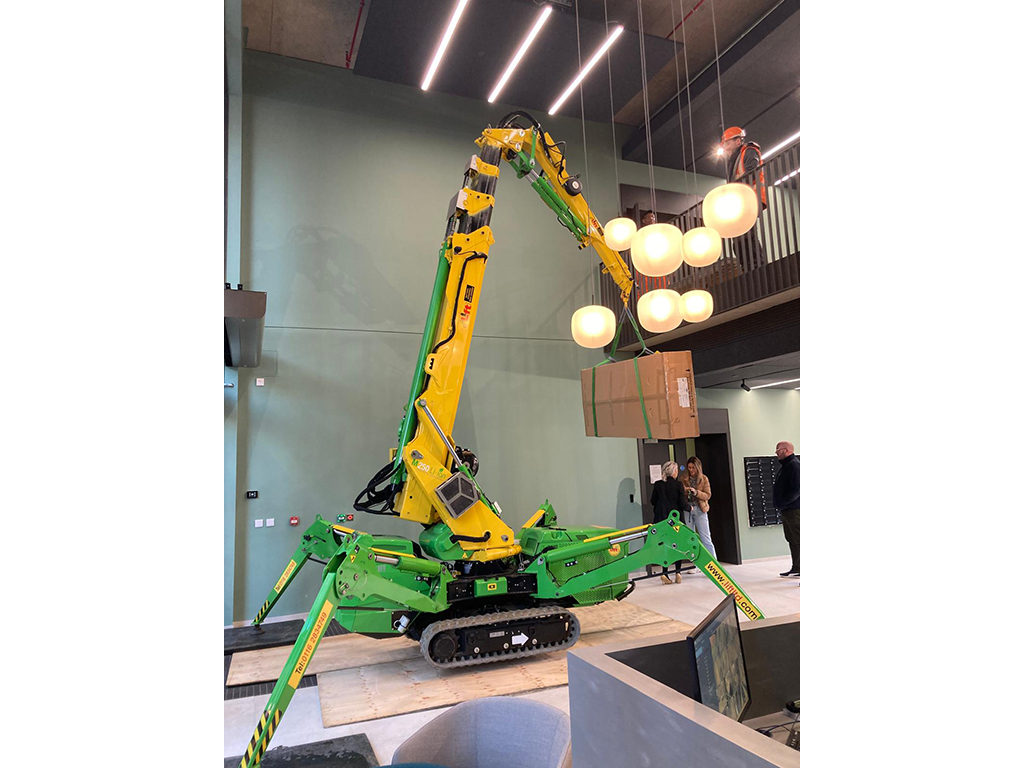

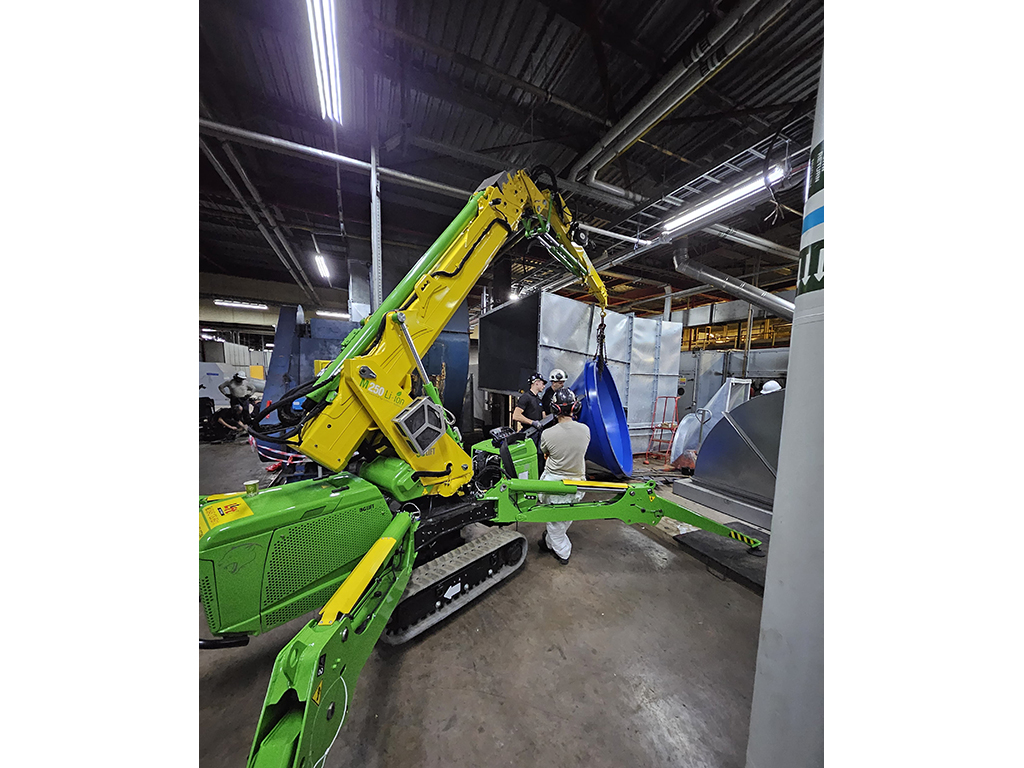

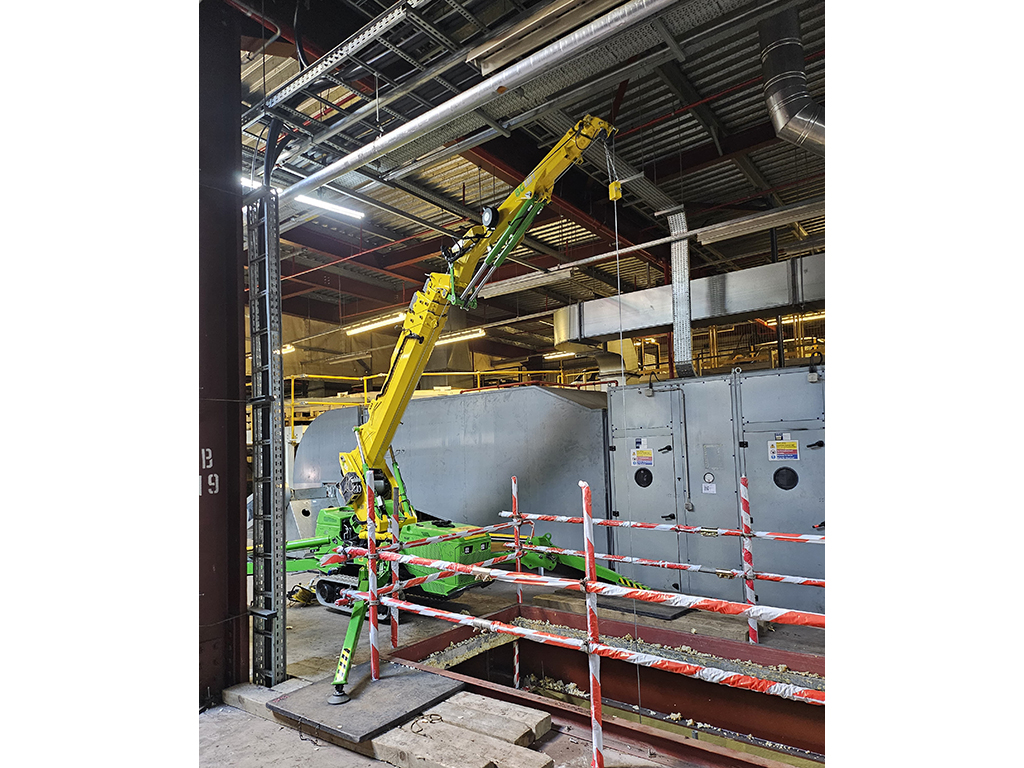

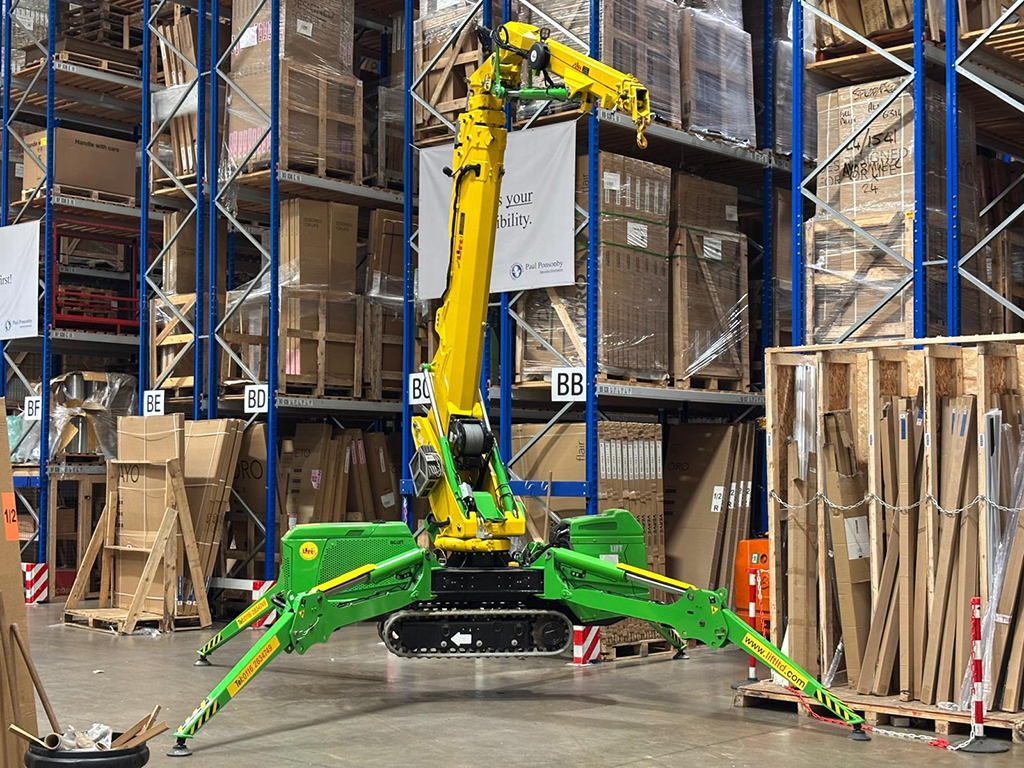

The BG-M250-ECO is a solid crane, equipped with advanced technologies, top quality materials and components, to obtain the best overall performance. It is built for indoor and outdoor use in limited spaces and hardly accessible buildings. The dimensions and lightweight, combined to millimetric precision manoeuvrability, allow quick and less invasive operations.
- Built for indoor and outdoor
- Limited spaces
- Ballast free boom
- Folded hydraulic jib
- Radio remote control
- Automatic stabilisation

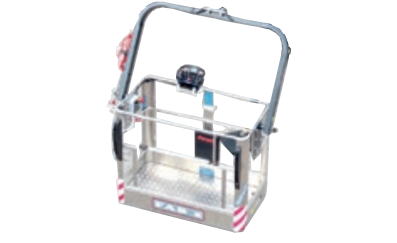

- Two man baskets capacity

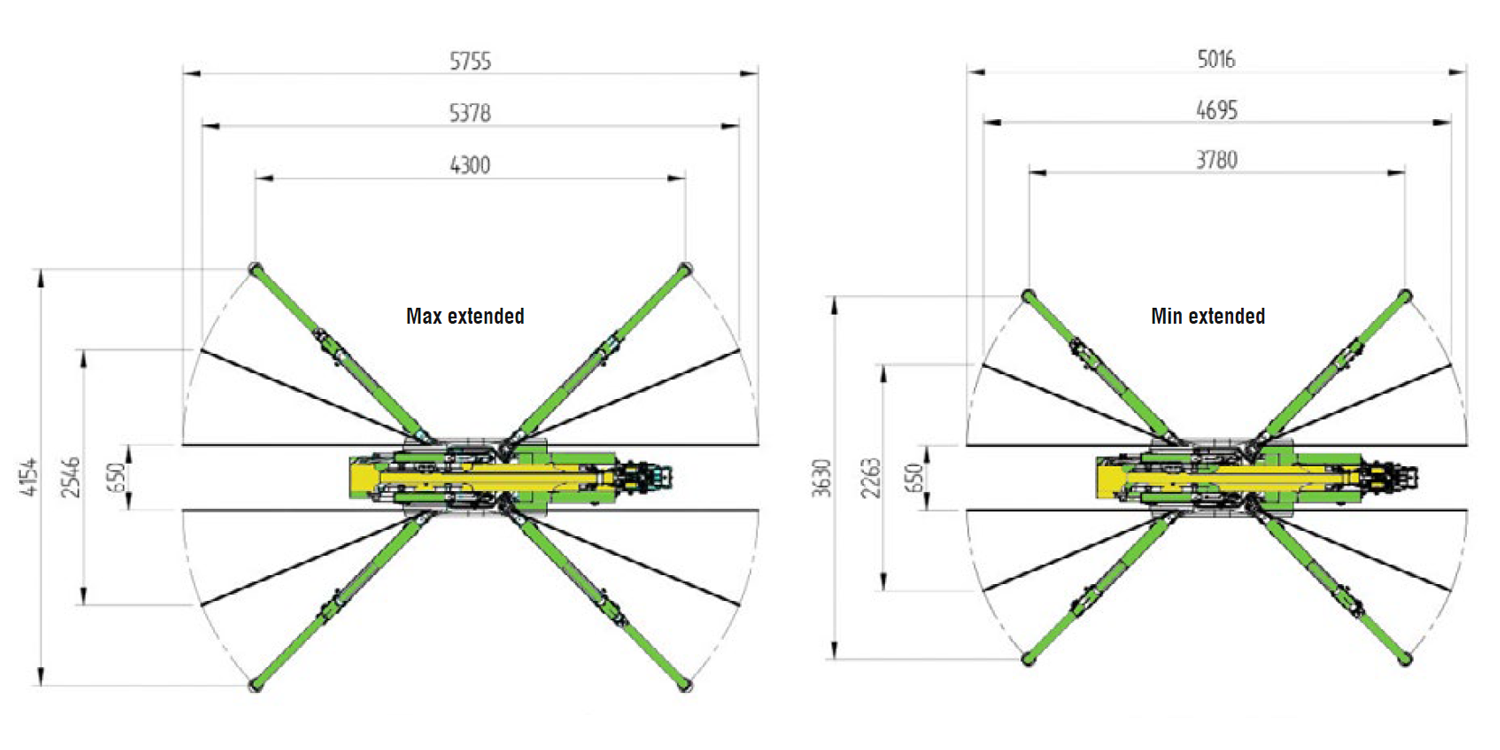

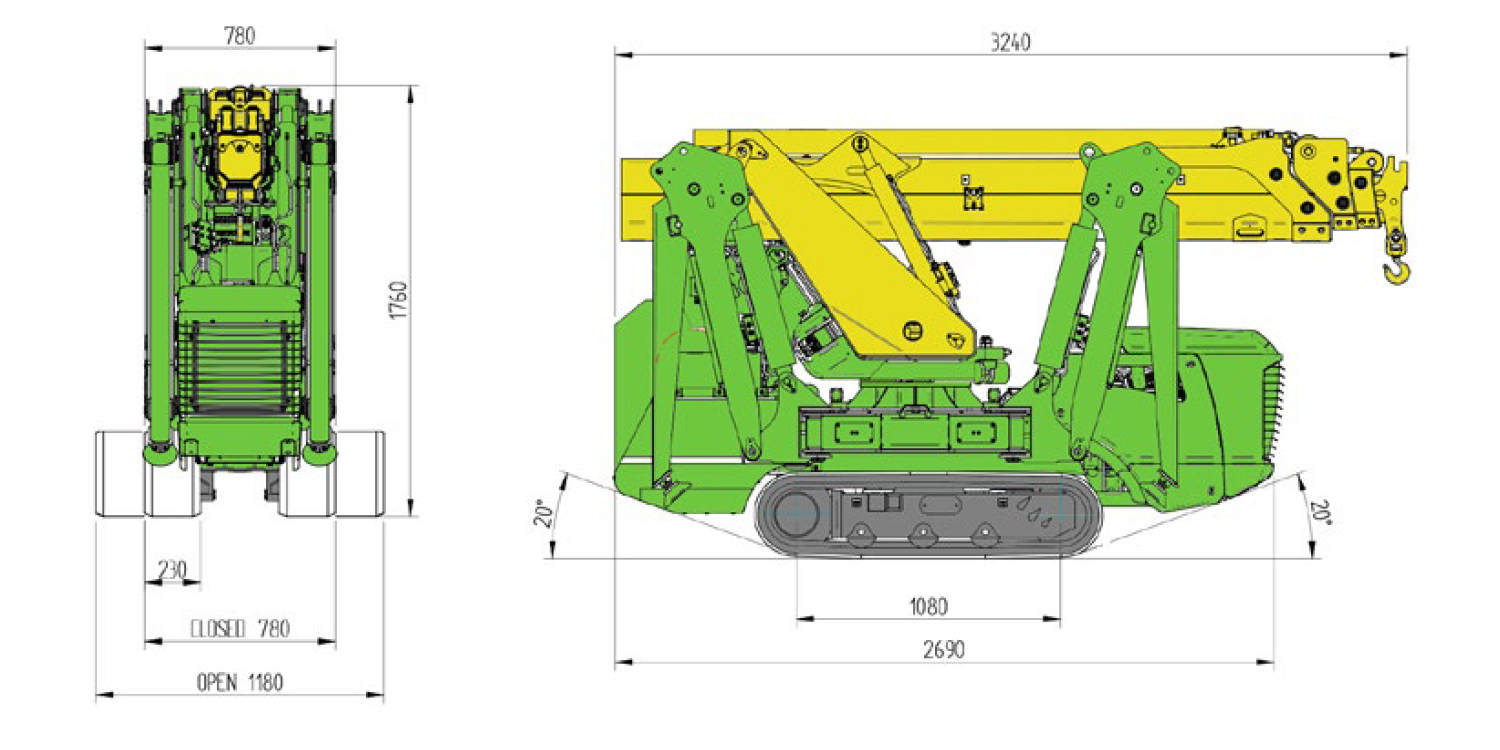

Dimensions
Technical Data
| Crane capacity | 2.5t x 1.5m |

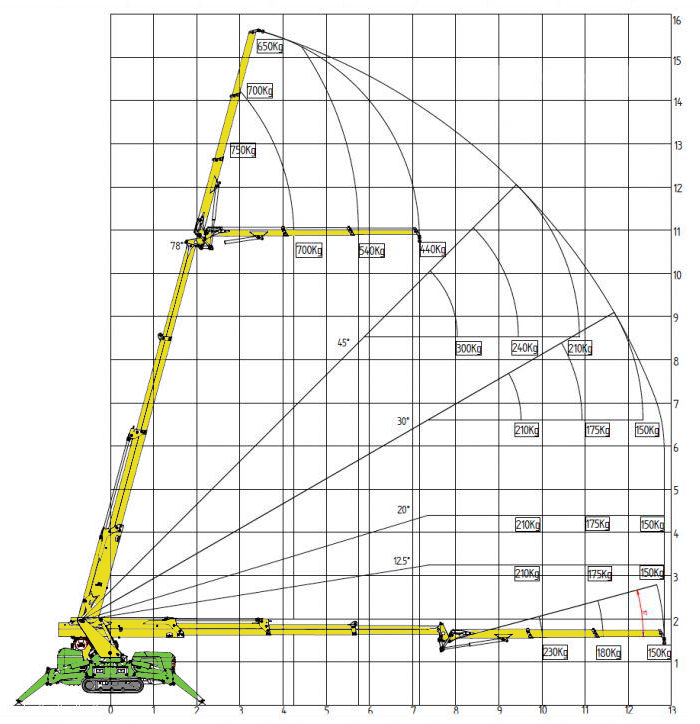

| Max working radius | 8.43m (12.85m jib) |
| Max lifting height (on ground) | 10.4m (16m jib) |
| Dimensions | 1.76m × 0.78m × 3.24m |
| Machine weight | 2420Kg |
| Slewing angle/rotation speed | Continuous / 1.5 rpm |
| Winch (optional) - First layer pull | 900Kg |
| Winch (optional) - Rope length | 68m |
| Winch (optional) - Speed in direct pull | 47m / min |
| Stability system | Max 4155×4300 |
| Jib weight | 210Kg |
| Electric motor weight | 40Kg |
| Winch weight | 65Kg |
| Traction - Transmission | Moto-reducer |
| Traction - Scope | 50 l / min |
| Traction - Pressure | 170 Bar |
| Traction - Speed | 0–2 Km/h |
| Traction - Max slope degree | 25° |
| Traction - Max pressure on ground | 0.47 Kg/cm² |
| Power supply | 48 V |
| Battery capacity | 200 Ah |
| Power | 8.5 W – 12 Hp |
Attachments & Accessories

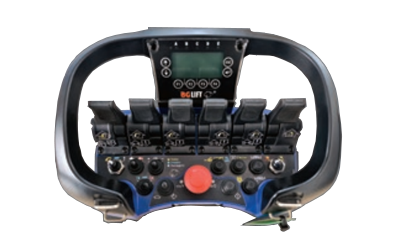

Radio Remote Control
as standard
